Bonded NdFeB magnetic powder

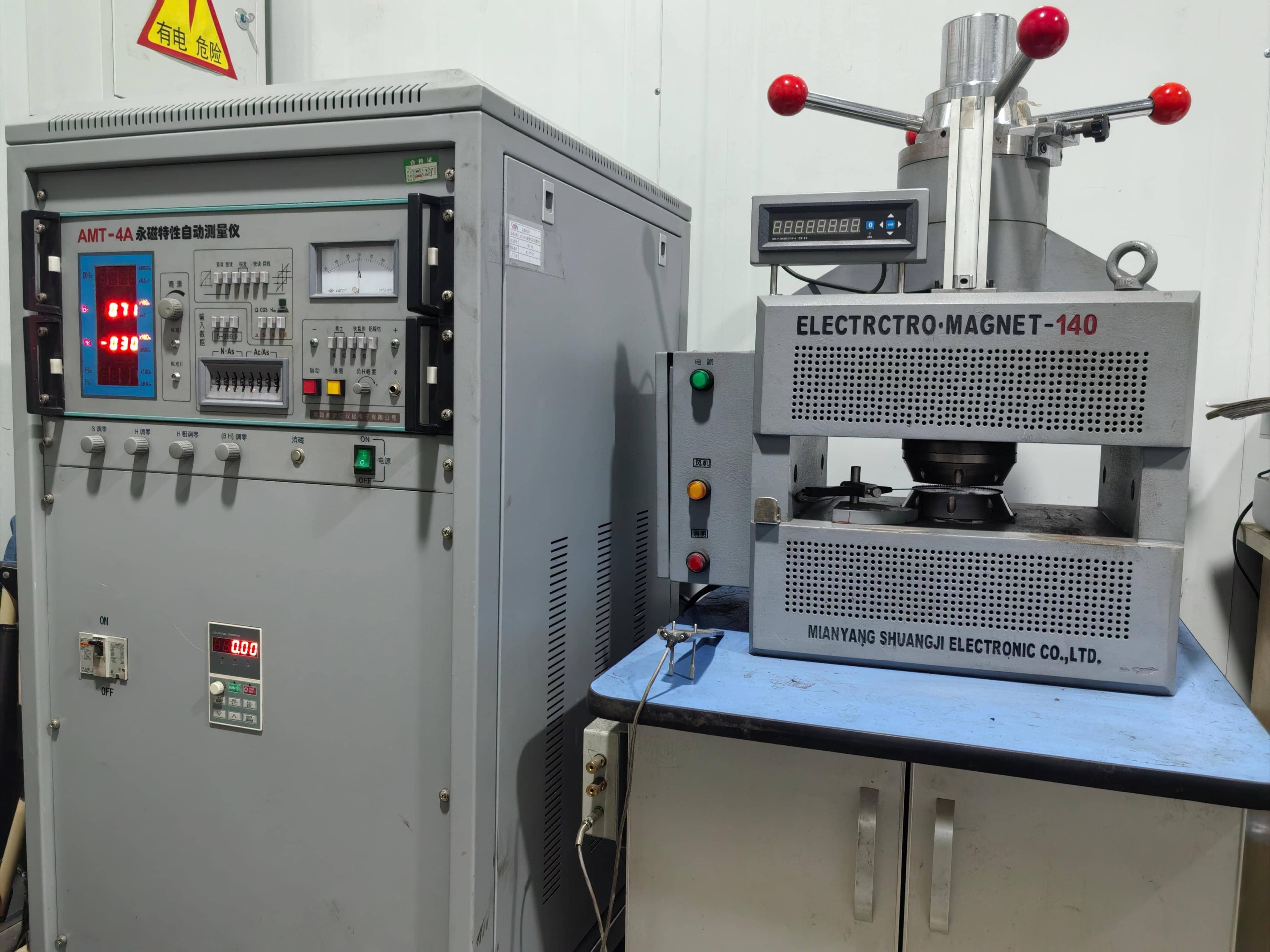

Melt-spun, rapidly quenched and crystallized NdFeB powder — the foundation of every magnet we make. Powder performance is verified in-house for Br, Hcb, Hcj, (BH)max and HK.
Products
One material chain. Three product levels.
Supply at the stage your production needs — from magnetic powder and bonded magnets to complete rotor assemblies.
Rotor assemblies
10.2 Rotor Assembly
A bonded NdFeB magnet ring injection molded with a gear shaft. Six grades from Z4 to Z9 cover surface magnetic fields from 1300 to 1950 G.
- Outside diameter
- 10.15–10.20 mm
- Magnet ring height
- 8.75–8.85 mm
- Shaft bore
- 1.01–1.04 mm
- Grades
- Z4–Z9
Customization
Configured to your drawing.
Rotor assemblies can be adapted to the gear form, color and dimensions your motor requires.
- Gear design
- Full-tooth or half-tooth
- Color
- Black
- Dark gray
- Light gray
- Dimensions
- Overall height and gear dimensions to customer requirements
- Surface field
- Linearly adjustable capability from 1200 to 2000 GModel-specific ranges are defined per grade.
Materials
Powder and magnets.
Bonded magnets
Powder and binder are mixed, compression molded and cured, then finished by grinding, vibratory chamfering, spray coating or electrophoretic coating before inspection and magnetization.
Applications
Where our rotors work.
- 01Security camerasCompact motors for camera positioning.
- 02Smart toiletsSmall actuators in sanitary appliances.
- 03Air-conditioning airflow controlVertical and horizontal airflow control motors.
- 04Stage lightingMotion and positioning motors for lighting fixtures.
Send us your drawing.
Share your dimensions, magnetic requirements and estimated volumes. Our engineering team will review your project.
